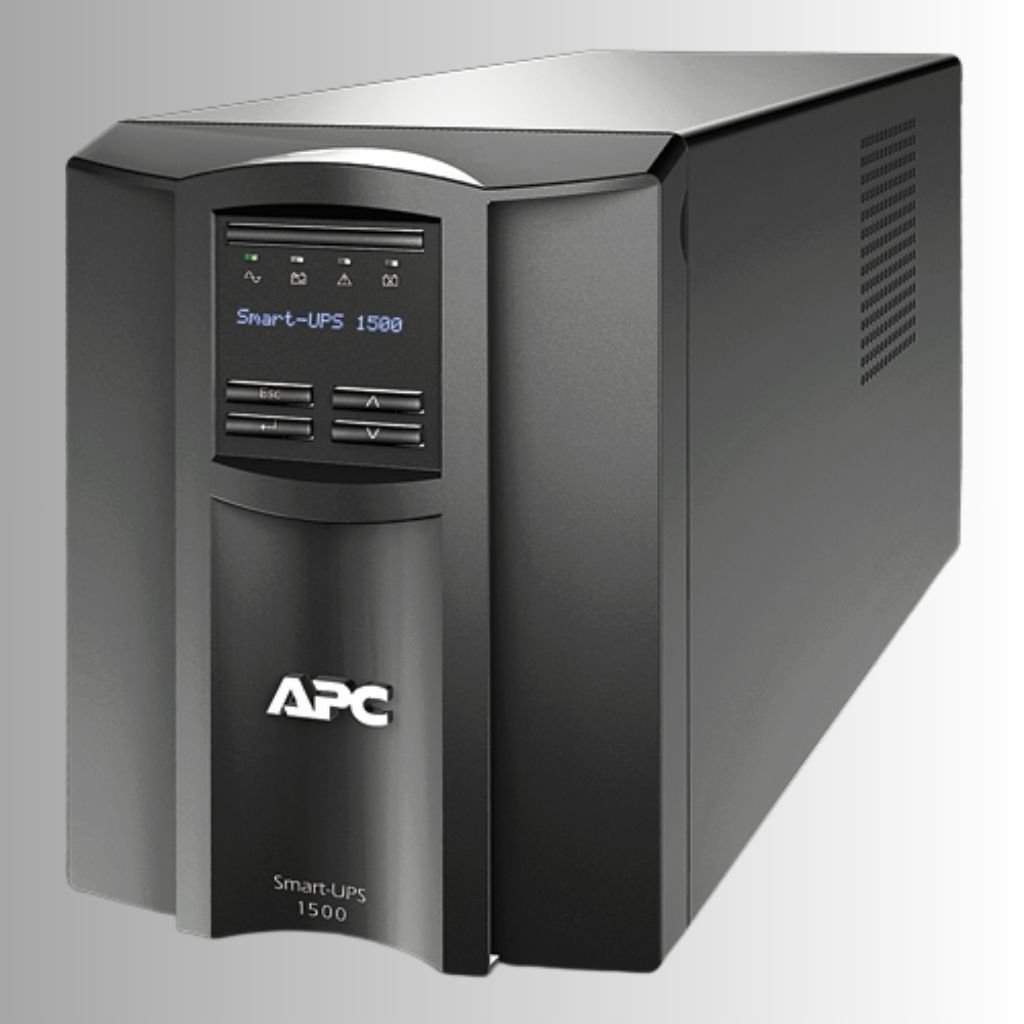

APC Smart-UPS 1500VA LCD 230V with SmartConnect | 1000W (SMT1500)

APC Smart-UPS 1500VA (SMT1500): Intelligent Power Protection

Safeguard your most critical IT assets, network switches, and high-end workstations with the highly advanced APC Smart-UPS 1500VA LCD 230V with SmartConnect. Engineered for superior reliability, this system delivers a robust 1000 Watts (1.5kVA) of line-interactive power, ensuring that your sensitive electronic infrastructure remains completely protected from damaging voltage sags, power spikes, and total blackouts.

Equipped with an intuitive multi-function LCD control console, IT administrators get real-time, comprehensive diagnostics right at the device level. The integration of advanced monitoring capabilities ensures that you can proactively manage your power environment, reducing costly downtime and extending the lifecycle of your server hardware.

Core Advantages & Features

• Pure Sine Wave Output: Provides clean, distortion-free power that guarantees 100% compatibility with active PFC (Power Factor Corrected) server power supplies, eliminating hardware stress.

• Intuitive LCD Interface: The multi-function control console offers clear, precise information on load capacity, battery health, and power events, allowing for quick on-site configurations.

• Intelligent Battery Management: Maximizes battery performance and longevity through highly precise, temperature-compensated charging, extending the life of the internal leak-proof cells.

• Advanced Line-Interactive Topology: Features automatic voltage regulation to instantly correct minor power fluctuations without switching to battery power, preserving essential runtime for actual outages.

Technical Specifications

Output Capabilities

• Maximum Power Capacity: 1000 Watts / 1500VA (1.5kVA)

• Nominal Output Voltage: User-configurable for 220V, 230V, or 240V grids

• Voltage Distortion: Highly stable, remaining below 5% under full load conditions

• Synchronized Frequency: 47–53 Hz (for 50Hz mains) / 57–63 Hz (for 60Hz mains)

• System Topology: Line-Interactive Architecture

• Waveform Output: Clean, Pure Sine Wave

Input Specifications

• Input Frequency: Auto-sensing 50/60 Hz (± 3 Hz tolerance)

• Standard Input Voltage Range: 160V to 286V

• Extended Input Range (Adjustable): 151V to 302V (maximizes battery conservation during severe brownouts)

• Supplied Power Cables: 1

Battery & Charging

• Battery Cell Type: Maintenance-free, leak-proof Sealed Lead-Acid (SLA) with suspended electrolyte

• Standard Recharge Time: Rapid 3-hour recovery to full charge

• Compatible Replacement Module: RBC7 (1 module required)

• Estimated Lifespan: 3 to 5 years of dependable service

• Battery Charge Power: 136 Watts

• Total Battery Capacity: 408 VAh

Communication & Interface

• Connectivity Ports: USB and a dedicated SmartSlot for expanded network management

• Display Dashboard: Multi-function LCD status and control console for real-time local management

• Alert System: Distinctive audible alarms for battery mode, low battery warnings, and continuous overload tones

Surge Protection & Filtering

• Surge Absorption Rating: 459 Joules

• Line Filtering: Full-time multi-pole noise filtering with 0.3% IEEE surge let-through and zero clamping response time (Meets UL 1449 compliance standards).

Physical Dimensions & Weight

• Unit Dimensions (H x W x D): 21.9 cm x 17.1 cm x 43.9 cm (219mm x 171mm x 439mm)

• Shipping Dimensions (H x W x D): 37.6 cm x 32.8 cm x 59.5 cm

• Device Weight: 24.09 kg

• Packaged Weight: 27.23 kg

• Chassis Color: Professional Black

• Pallet Quantity: 12 Units

Environmental & Compliance

• Operating Temperature Range: 0°C to 40°C

• Operating Humidity: 0% to 95% (non-condensing)

• Maximum Operating Elevation: Up to 3,000 meters

• Acoustic Noise: 45.0 dBA (measured 1 meter from the unit)

• Thermal Dissipation (Online): 135.0 BTU/hr

• Regulatory Approvals: CE, EAC, RCM, VDE, EN/IEC 62040-1, EN/IEC 62040-2

• Warranty: 3-Year comprehensive standard warranty (repair or replace) on the unit, and a 2-Year warranty on the internal battery.

• Sustainability: Fully RoHS compliant; REACH (Contains SVHCs), with PEP and EOLI documentation available.
