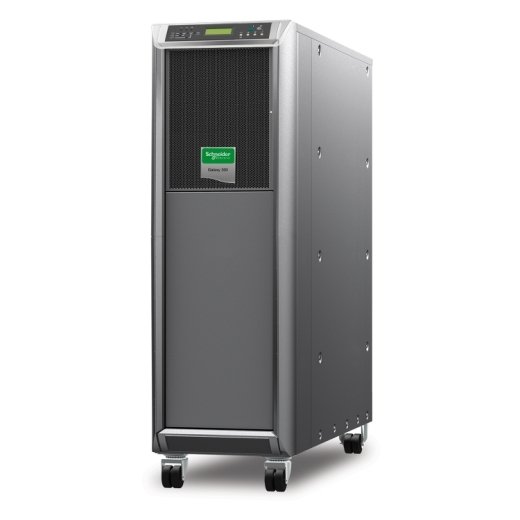

MGE Galaxy 300 20 kVA 400V Three-Phase Online UPS (G3HT20KHB2S) – Industrial Power Protection in Pakistan
The MGE Galaxy 300 20 kVA 400V 3:3 Three-Phase Online UPS (G3HT20KHB2S) is Schneider Electric’s proven industrial-grade three-phase UPS — engineered to deliver effective three-phase power protection against downtime and data loss for mission-critical applications. Featuring 16 kW / 20 kVA capacity in a ruggedized chassis with dust filter, integrated 25-minute battery runtime, pre-installed AP9630 Network Management Card, and factory-authorized Start-Up service, this UPS is the trusted choice for medium data centres, hospitals, industrial facilities, and process plants across Pakistan. Delivered, installed, and commissioned by Link Power Engineerings, Pakistan’s certified Schneider Electric industrial power partner.
Why Choose MGE Galaxy 300 20 kVA (G3HT20KHB2S)?
- True Three-Phase Input & Output (3:3) — connects directly to industrial and commercial 400V three-phase supply, protects three-phase loads without conversion.
- Double Conversion Online Topology — zero transfer time, complete isolation from grid disturbances.
- 16 kW / 20 kVA Industrial Capacity — powers medium data centres, hospital wings, manufacturing lines, and telecom shelters.
- 0.98 Input Power Factor at Full Load — reduces demand on your incoming supply and generator sizing.
- Less than 5% Input THD — clean current draw doesn’t distort your supply or trip upstream protection.
- 25-Minute Integrated Battery Runtime — factory-configured with internal battery for immediate deployment.

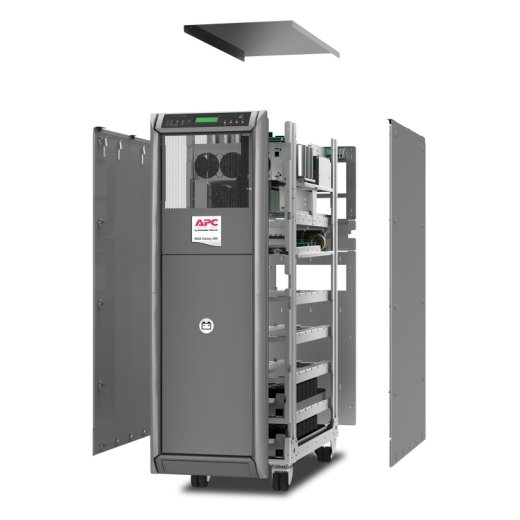

- Ruggedized Chassis with Dust Filter — designed for harsh industrial environments in Pakistan’s dusty conditions.
- Pre-Installed AP9630 Network Management Card — SNMP, email alerts, PowerChute Network Shutdown, remote monitoring from day one.
- Multi-Function LCD Status Console — intuitive control and comprehensive diagnostics.
- Emergency Power Off (EPO) — required for data centre and facility integrations.
- 1-Year On-Site Warranty with Factory-Authorized Start-Up — ensures correct commissioning and full manufacturer coverage.
MGE Galaxy 300 G3HT20KHB2S Technical Specifications
- Output Power: 16 kW / 20 kVA
- Output Voltage: 400V 3-Phase nominal (380V / 415V configurable)
- Output Voltage THD: < 3% linear load, < 5% non-linear load
- Output Voltage Tolerance: ±2% static and 100% load step
- Output Voltage Distortion: Less than 5%
- Maximum Output Current: 43A
- Load Crest Factor: 2.5 : 1
- Topology: Double Conversion Online | Waveform: Pure Sine Wave
- Output Frequency (sync): 50/60 Hz ±5% | Free-running: ±0.1%
- Input Voltage Range: 340V – 477V (adjustable 323V – 477V)
- Input Frequency: 45 – 65 Hz | Input THD: Less than 5% at full load
- Input Power Factor: 0.98 at full load
- Input Protection: gL fuse required
- Nominal Battery Voltage: ±192V (split battery, referenced to neutral)
- End of Discharge Voltage: ±154V
- Integrated Runtime: 25 minutes with internal battery
- Interface Ports: DB-9 RS-232, USB, Pre-installed AP9630 Network Management Card
- Display: Multi-Function LCD Status & Control Console
- Emergency Power Off (EPO): Yes
- Protection Class: IP 20
- Dimensions (H × W × D): 1300 × 400 × 950 mm
- Net Weight: 375 kg | Shipping Weight: 400 kg
- Operating Temperature: 0 – 35 °C
- Audible Noise: 54.5 dBA at 1 metre
- Online Thermal Dissipation: 1260 BTU/hr
- Compliance: CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, TUV, VFI-SS-111
- Warranty: 1 Year On-Site Repair or Replace with Factory-Authorized Start-Up
Ideal Applications in Pakistan
- Medium data centres with three-phase power infrastructure
- Hospital wings — imaging suites, laboratory blocks, pharmacy automation
- Bank data centres & regional processing hubs
- Industrial control systems & process automation lines
- Telecom operator core switching sites
- Manufacturing facilities with three-phase motor loads
- University research computing clusters
- Government & defence critical infrastructure
What’s Included in the Box
- MGE Galaxy 300 20 kVA UPS Unit (G3HT20KHB2S) with integrated battery
- Pre-installed AP9630 Network Management Card
- CD with PowerChute Software
- Installation Guide & User Manual
- Factory-Authorized Start-Up Service (5×8)
Need More Capacity?
For larger three-phase deployments, consider the MGE Galaxy 300 40 kVA (G3HT40KHB2S) — 32 kW capacity for full data centre or industrial facility protection. For smaller single-phase online UPS requirements, our range includes the APC Smart-UPS RC 10000VA (SRC10KUXI) for 9 kW loads and APC Smart-UPS RC 3000VA (SRC3000XLI) for 2.1 kW critical devices.
Enterprise Solution from Link Power Engineerings
A three-phase industrial UPS is a major infrastructure investment. Our full-service approach includes site survey, single-line diagram review, three-phase electrical integration, generator changeover coordination, factory-authorized commissioning, AMC contracts with quarterly preventive maintenance, and priority emergency onsite repair service across Pakistan. Our engineers hold Schneider Electric certifications for the MGE Galaxy 300 series.
At Link Power Engineerings, we offer competitive MGE Galaxy 300 20 kVA price in Pakistan on 100% genuine Schneider Electric units with complete professional installation service. Since this is a project-based sale requiring site survey and start-up planning, please contact us for a customised quote.
Call +92 327 1000669, WhatsApp our enterprise team, or use the Contact Us button above for a site visit and complete solution quote within 48 hours.
