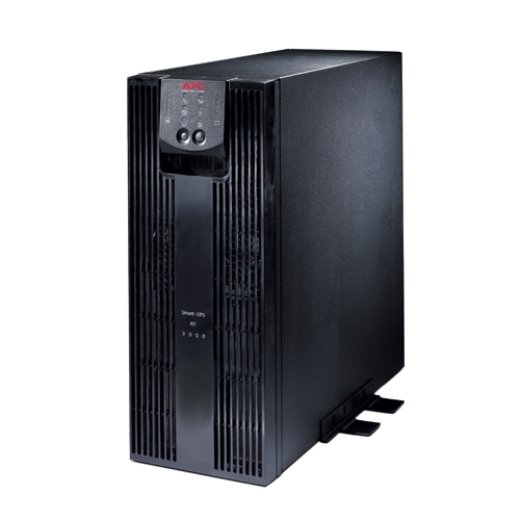

APC Smart-UPS RC 5000VA 230V (SRC5000XLI) – Enterprise 5 kVA Online UPS with Internal Battery
The APC Smart-UPS RC 5000VA 230V (SRC5000XLI) is Schneider Electric’s mid-enterprise double-conversion online UPS — engineered for medium data centres, hospital wings, industrial facilities, and mid-scale critical IT infrastructure. Delivering 4 kW / 5 kVA capacity with zero transfer time, built-in bypass, and full-time UL 1449 surge/noise filtering. Unlike the SRC6KUXI India variant, this model ships WITH internal battery for ready-to-run deployment. Sourced from Link Power Engineerings, Pakistan’s certified APC enterprise power partner.
Why Choose APC Smart-UPS RC 5000VA (SRC5000XLI)?
- Double Conversion Online with zero transfer time and complete input isolation.
- 4 kW / 5 kVA Enterprise Capacity — powers medium server racks, hospital equipment banks, or industrial control cabinets.
- Includes Internal Battery — ready to run out of the box, no external battery cabinet required for standard runtime.
- Built-in Bypass — automatic bypass during internal faults ensures continuous uptime.
- Extended Runtime Available via compatible external battery packs.
- Wide Input Voltage Range tolerates severe voltage sags in Pakistan’s variable grid.
- Full-Time Multi-Pole Noise Filtering (UL 1449) with surge protection.
- Convertible Tower / Rack Form Factor — flexible installation options.
- DB-9 RS-232, USB & SmartSlot for network management and PowerChute integration.
- Emergency Power Off (EPO) support.
- 2-Year Repair-or-Replace Warranty with local UPS repair & AMC service.
APC SRC5000XLI Technical Specifications
- Output Power: 4000W / 5.0 kVA
- Output Voltage: 230V nominal, 220V / 240V configurable
- Topology: Double Conversion Online | Waveform: Pure Sine Wave
- Output Voltage Distortion: Less than 5%
- Bypass: Built-in Bypass (Automatic and Manual)
- Input Voltage Range: 160V – 285V (Adjustable 100V – 285V)
- Input Frequency: 40 – 70 Hz (Auto Sensing)
- Battery Configuration: Internal Sealed Lead-Acid — Included
- Nominal Battery Voltage: 192V
- Recharge Time: Approximately 3 hours
- Expected Battery Life: 3 – 5 years
- Interface Ports: DB-9 RS-232, USB, SmartSlot
- Display: LED Status with Load & Battery Bar-Graphs
- EPO: Yes | SmartSlot Interfaces: 1
- Surge Energy Rating: 420 Joules
- Filtering: Full-Time Multi-Pole Noise Filtering (UL 1449)
- Form Factor: Convertible Tower / Rack Mount
- Weight: Approximately 100 kg
- Warranty: 2 Years Repair or Replace
Ideal Applications in Pakistan
- Medium data centres (2–3 server racks on shared UPS)
- Hospital wings & ICU floors
- Bank regional branches with server + multiple terminals
- Industrial control systems (PLC + SCADA + drives)
- Telecom operator base stations
- Broadcasting & media production facilities
- University data centres & research computing
APC Online UPS Family — Where SRC5000XLI Fits
The SRC5000XLI sits between the SRC3000XLI (2.1 kW) and the enterprise SRC10KUXI (9 kW). If your load is smaller, the SRC3000XLI with extendable SRC96XLBP battery pack is more cost-effective. For larger data centre deployments, step up to the 10 kVA range with 192V external battery cabinets.
Enterprise Installation & Support in Pakistan
Every 5 kVA online UPS deserves careful site survey and expert commissioning. Link Power Engineerings provides professional UPS installation service in Lahore plus AMC contracts covering quarterly battery health checks and priority emergency response.
APC Smart UPS RC 5000VA in Pakistan – Link Power Engineerings
At Link Power Engineerings, competitive APC Smart UPS RC 5000VA price in Pakistan on 100% genuine Schneider Electric units — verified serial numbers, original manufacturer warranty, and professional installation service across Lahore, Karachi, and Islamabad. Mid-enterprise 5 kVA online UPS with internal battery — ready for immediate deployment.
Call +92 327 1000669, WhatsApp our team, or use the Contact Us button above for a same-day quote and delivery timeline.
