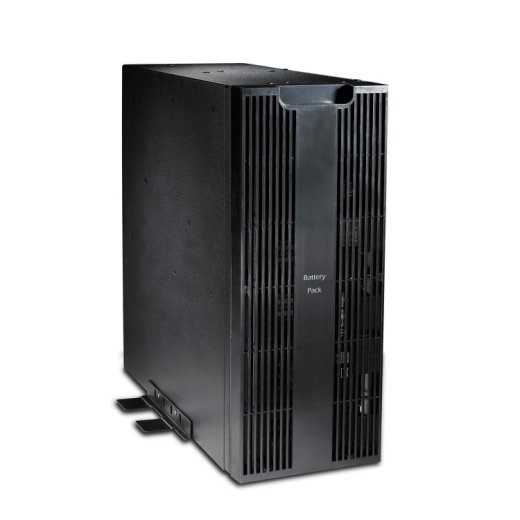

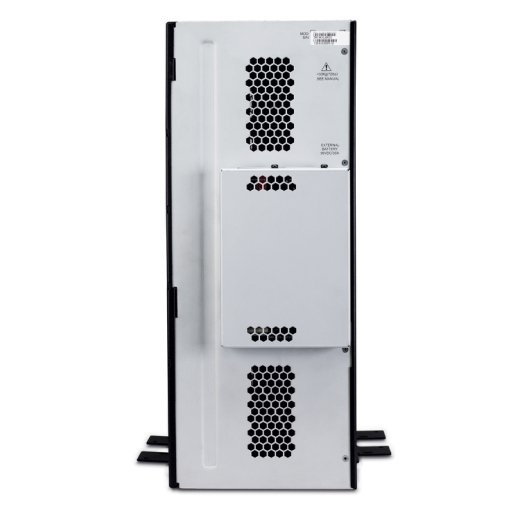

APC SRC96XLBP – 96V External Battery Pack for APC Smart-UPS RC 3000VA (SRC3000XLI)
The APC SRC96XLBP is a purpose-built 96V external battery cabinet from Schneider Electric — designed specifically to extend the runtime of the APC Smart-UPS RC 3000VA (SRC3000XLI) double-conversion online UPS. Adding 2074 VAH of additional battery capacity through 3 included maintenance-free sealed lead-acid battery modules. Sourced and supported by Link Power Engineerings, Pakistan’s certified APC power partner.
The SRC96XLBP is a 96V battery system, compatible with APC Smart-UPS RC 3000VA (SRC3000XLI) ONLY. It is NOT compatible with SRC6000XLI, SRC6KUXI, SRC10000XLI, or SRC10KUXI (all 192V systems requiring SRC192XLBP2). If unsure which battery pack matches your UPS, call our team on +92 327 1000669.
Why Choose APC SRC96XLBP for Your SRC3000XLI?
- 2074 VAH Additional Capacity — nearly 3× the SRC3000XLI’s internal 692 VAH, extending runtime from ~10 minutes to 30–60+ minutes at full load.
- 3 Included Battery Modules — factory pre-installed and configured, ready to connect on delivery.
- Maintenance-Free Sealed Lead-Acid Batteries with suspended electrolyte (leak-proof) — safe for indoor installation.
- Stand-Alone Floor Cabinet — no rack space required.
- 3–5 Year Expected Battery Life — synchronized replacement with internal battery.
- 2-Year Warranty — with local battery pack maintenance service.
SRC96XLBP Technical Specifications
- Product Type: External Battery Pack Cabinet
- Nominal Voltage: 96V DC | Capacity: 2074 VAH
- Battery Type: Maintenance-Free Sealed Lead-Acid
- Included Battery Modules: 3 | Blocks per String: 2
- Battery Mounting: Stand-Alone Floor Cabinet
- Expected Battery Life: 3 – 5 years
- Compatible UPS: APC Smart-UPS RC 3000VA (SRC3000XLI) — 96V system only
- Dimensions (H × W × D): 432 × 174 × 480 mm | Weight: 72.73 kg
- Color: Black | Warranty: 2 Years
Approximate Runtime with 1 SRC96XLBP on SRC3000XLI
- 25% load (525W): ~150 minutes | 50% load (1050W): ~70 minutes
- 75% load (1575W): ~40 minutes | 100% load (2100W): ~25 minutes
Multiple packs can be daisy-chained for longer runtime. Our engineers calculate exact runtime based on your measured load.
Professional Installation & Battery Maintenance
External battery cabinets require careful installation. Link Power Engineerings provides professional UPS & battery installation service in Lahore — cabling to paired UPS, commissioning, PowerChute runtime configuration, and capacity testing. AMC covers quarterly health checks and preventive replacements.
At Link Power Engineerings, competitive APC SRC96XLBP battery pack price in Pakistan — 100% genuine Schneider Electric units. Call +92 327 1000669 for a same-day quote and runtime calculation.
