APC Smart-UPS C 1500VA LCD RM 2U 230V (SMC1500I-2U) – Line Interactive Rack Mount UPS

APC Smart-UPS C 1500VA LCD RM 2U 230V (SMC1500I-2U) – Affordable Rack Mount UPS in Pakistan

The APC Smart-UPS C 1500VA LCD RM 2U 230V (SMC1500I-2U) is Schneider Electric’s cost-effective 2U rack mount UPS — engineered to deliver reliable pure sine wave backup power for small server rooms, network racks, POS setups, and branch office IT. Delivering 900 Watts / 1500VA in a compact 2U form factor with an extended 4–6 year battery life, this UPS bridges the gap between entry-level Back-UPS and premium Smart-UPS models. Sourced and supported by Link Power Engineerings, Pakistan’s trusted APC UPS partner serving Lahore, Karachi, Islamabad, and businesses nationwide.

Why Choose APC Smart-UPS C 1500VA Rack Mount (SMC1500I-2U)?

• Line Interactive Topology with Automatic Voltage Regulation (AVR) corrects high and low voltage without switching to battery — extending battery life significantly.
• Pure Sine Wave Output ensures full compatibility with PFC (Power Factor Corrected) servers and sensitive electronics.
• Ultra-Fast 2ms Transfer Time delivers near-seamless switchover to battery backup during power failures.
• 2U Rack Mount Form Factor fits standard 19-inch server racks — mounting brackets included in the box.
• Multi-Function LCD Display gives real-time visibility of load, battery, and fault status.
• Dual Interface Ports: USB + RJ-45 Serial — more flexible communications than the SMC1500I tower version, enabling connection to legacy management systems and modern PowerChute Business Edition software.
• 459 Joule Surge Protection with full-time multi-pole noise filtering — meets UL 1449 standards.
• Extended 4–6 Year Battery Life — significantly longer than most Smart-UPS models, reducing total cost of ownership over the UPS lifetime.
• Higher Battery Capacity (260 VAH) and stronger charge power (86W) than the SMC1500I tower model — longer runtime and faster recharge.
• Low Thermal Dissipation (90 BTU/hr) — reduces server room cooling load compared to competing rack UPS models.
• Cost-Effective “C” Series — professional-grade sine wave protection at a friendlier price point than the premium Smart-UPS SMT range.
• 2-Year Repair-or-Replace Warranty — genuine Schneider Electric backing, with local UPS repair service in Lahore for out-of-warranty support.

APC SMC1500I-2U Technical Specifications

• Output Power: 900W / 1500VA (1.5 kVA)
• Output Voltage: 230V (nominal), 220V / 240V configurable
• Waveform Type: Pure Sine Wave
• Topology: Line Interactive
• Output Voltage Distortion: Less than 5% at full load
• Transfer Time: 2ms typical
• Input Voltage Range (main operations): 180V – 287V
• Input Voltage Adjustable Range: 170V – 300V
• Input Frequency: 50 / 60 Hz +/- 3 Hz (auto sensing)
• Number of Power Cords: 1
• Battery Type: Maintenance-Free Sealed Lead-Acid (leak-proof)
• Recharge Time: 3 hours to 90% capacity
• Expected Battery Life: 4 – 6 years
• Battery Charge Power: 86 Watts
• Battery Volt-Amp-Hour Capacity: 260 VAH
• Replacement Battery Cartridge: APC RBC132

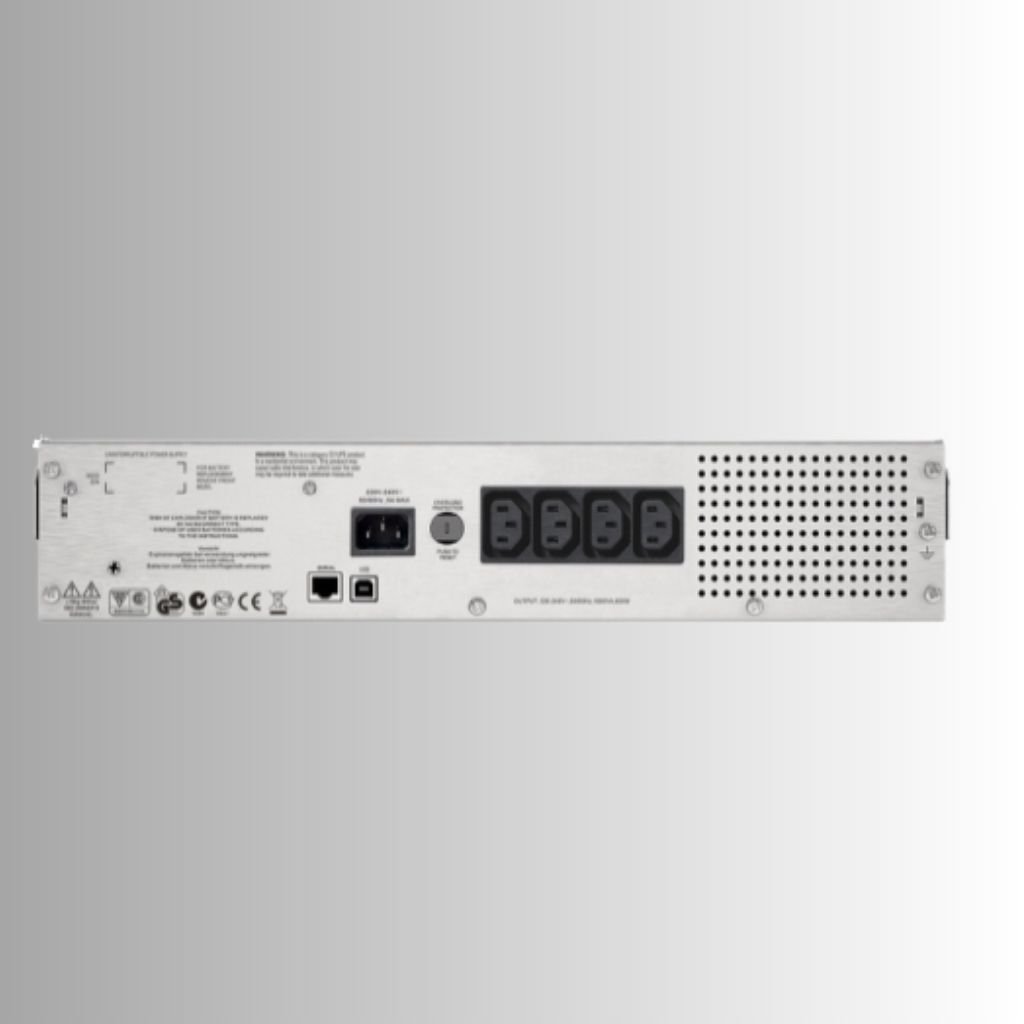

• Interface Ports: RJ-45 Serial, USB
• Control Panel: Multi-function LCD status and control console
• Surge Energy Rating: 459 Joules
• Audible Noise (at 1 metre): 46 dBA
• Online Thermal Dissipation: 90 BTU/hr
• Form Factor: 2U Rack Mount (fits 19-inch racks)
• Dimensions (H × W × D): 89 × 432 × 457 mm
• Net Weight: 28.64 kg
• Color: Black
• Operating Temperature: 0 – 40 °C
• Operating Humidity: 0 – 95%
• Operating Elevation: 0 – 3000 metres
• Compliance / Approvals: C-tick, CE, CSA, EAC, GOST, UL 1778, VDE
• RoHS: Compliant
• Warranty: 2 Years Repair or Replace

Ideal Applications for APC Smart-UPS C 1500VA Rack in Pakistan

• Small business server rooms & on-premise IT racks
• Rack-mounted single-server setups (Dell, HP, Lenovo, Supermicro)
• Network racks — routers, managed switches, firewalls
• Point-of-Sale (POS) system racks in retail chains
• Telecom edge equipment & small ISP nodes
• CCTV NVR/DVR racks & enterprise security setups
• Small clinic & diagnostic imaging equipment
• Bank branch back-office IT infrastructure
• Data closet deployments where budget matters
• Restaurant & hospitality kitchen management systems

What’s Included in the Box

• APC Smart-UPS C 1500VA Unit (SMC1500I-2U)
• Rack Mounting Brackets
• Software CD with PowerChute Business Edition
• Documentation CD & Installation Guide
• USB Cable
• User Manual & Warranty Card

Smart-UPS C 1500VA Rack – Choosing the Right APC UPS for Your Server Room

The Smart-UPS C series (SMC) is APC’s cost-effective sine wave UPS line, positioned between the entry-level Back-UPS and the premium Smart-UPS. For larger rack deployments where 900W isn’t enough, we recommend the APC Smart-UPS 2200VA Rack Mount (SMT2200RMI2U) — 1980W of enterprise-grade rack protection with SmartSlot for network management cards and a 3-year warranty. If you prefer a tower form factor with the same 1500VA capacity, the APC Smart-UPS 1500VA with SmartConnect (SMT1500) is a premium alternative with 1000W output, RS-232, remote SmartConnect monitoring, and 3-year warranty. For mission-critical loads — healthcare equipment, financial systems, 24/7 servers — step up to the APC Smart-UPS RC 1000VA (SRC1000I) online double-conversion UPS with zero transfer time. The SMC1500I-2U is the sweet-spot pick for small business server rooms that want reliable rack-mounted sine wave protection at a friendly price.

Professional Installation & Support in Pakistan

Every APC UPS from Link Power Engineerings can be shipped with the option of professional UPS installation service in Lahore — including site survey, rack integration, load calculation, certified wiring, commissioning, and PowerChute software configuration by Schneider Electric certified engineers. Already have an APC UPS giving trouble? Our team also provides component-level UPS repair & maintenance service covering APC and all major brands across Pakistan — with same-day onsite response for contracted clients.
